DACT Phone
(Digital Enhanced Cordless Telecommunications)
Advantages
Great price for performance measure
Best choice for Home and Office use
Cost-saving
User friendly
Key Features
Make VoIP/ PSTN calls with a DECT phone.
Answer VoIP/ PSTN calls through any key on the phone pad.
Foreign Exchange Subscriber (FXS) POTS port (RJ-11 jack).
Built-in PPPoE function to support dial-up connection for broadband technology.
IP address assignment using DHCP or static configuration.
Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG).
Silence suppression to reduce bandwidth consumption.
Adaptive jitter buffer for smooth voice reception.
Lost packet recovery ability for improved voice quality.
Support multi-handsets (up to five handsets).
Support intercom calls and paging function.
Support PSTN phonebook and Caller ID.
Support hands free and mute function.
Support hot call and barring calls function.
Adjustable volume & melody of external and internal ring.
Product Specification:
VoIP phone performance: G.711 A /µ-Law, G.723.1, G.729, iLBC Audio Coding
Standard: DECT/GAP.
Frequency: 1.8GHZ; 1.9GHZ; 2.4GHZ.
Communication range: Outdoor- 300 meters, Indoor- 50 meters.
Power consumption: 100 hours standby time, 10 hours talk time.
Power supply :
- u Base: Input- AC 120V/230V∼60/50HZ, Output- DC 9V 1000 mA.
- Handset: NI-MH Battery (AAA,1.2V,550mA).

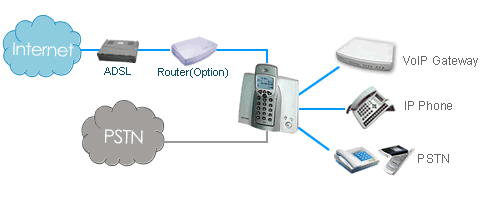

Frame Diagram
